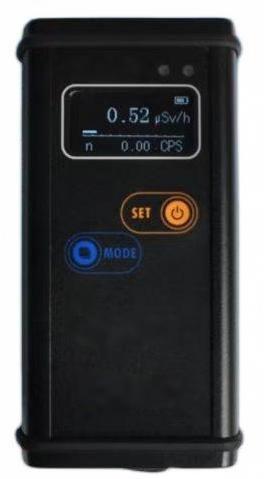

RD-103GN Neutron/Gamma Radiation Detector

 Product Introduction

The RD-103GN is a highly sensitive, multifunctional radiation detection instrument designed for the rapid detection of X-rays, gamma rays, and neutrons in unknown radioactive environments. It is the preferred alarm instrument for routine surveys and the search for weak radioactive sources across sectors such as environmental monitoring, homeland security, border crossings, commodity inspection, customs, airports, firefighting, emergency response, and chemical defense units. In addition to providing round-the-clock monitoring of ambient radiation dose rates and accumulated doses, the instrument features Bluetooth wireless communication capabilities.

Hardware Configuration

• Wireless Bluetooth communication (optional)
• High-speed, low-power processor
• Rugged, waterproof housing with high electromagnetic interference (EMI) resistance
• Ultra-low power consumption circuitry
• High-definition LCD screen
• Removable/rechargeable lithium battery

Key Features

• High-sensitivity cesium iodide (CsI) scintillation crystal and lithium fluoride (LiF) detector
• Compact design capable of detecting multiple types of radiation: rapid alarm response within 2 seconds for X-rays and gamma rays, and within 2 seconds for neutron radiation

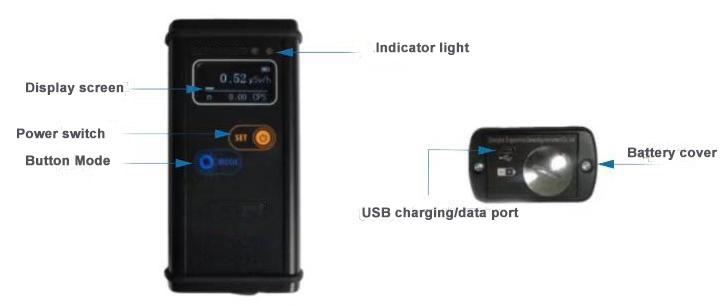

• Dual-button operation with an OLED display for ease of use and flexible settings
• Rugged and explosion-proof design suitable for harsh environments; IP65 protection rating
• Vibration, audible, and visual alarms adapted for complex environments
• Supports Bluetooth wireless communication: real-time data and alarm transmission, as well as historical data download, facilitating system integration (optional)
• Energy-efficient: up to 200 hours of continuous operation on two standard AA alkaline batteries

Technical Parameters
