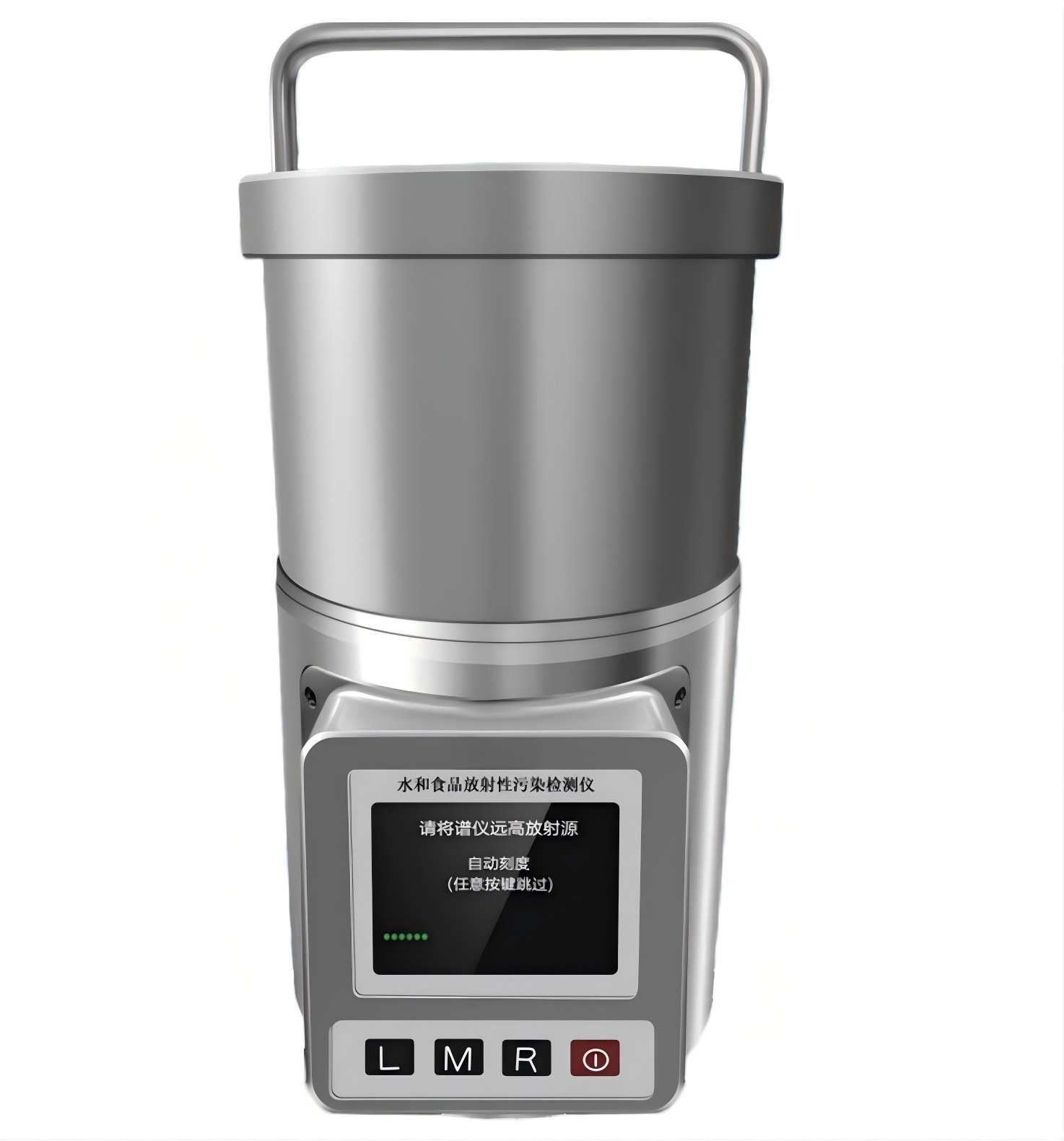

Radioactive Contamination Detector for Food and Water

RD45-2 Water and Food Radioactive Contamination Detector

The RD45-2 Water and Food Radioactive Contamination Detector measures the specific activity of 137Cs and 131I radionuclides in food and water, including various beverages. This instrument is ideal for enterprises, inspection and quarantine departments, disease control centers, and environmental protection agencies to conduct rapid detection of radioactive contamination levels.

Key Applications

Widely used in radiation monitoring and protection fields, providing reliable technical support for national counter-terrorism, nuclear emergency response, nuclear power plants, customs, and entry-exit inspection and quarantine.

Human-Computer Interaction

Background measurement and sample measurement modes
Four-button interface: power on/off, left, right, and confirmation buttons
Simultaneous display of real-time CPS, average CPS, and measurement time
Multiple measurement modes: background, sample activity, liquid, and solid
Configurable alarm thresholds, measurement time, system time, and alarm settings

Instrument Applications

Non-War Environments: Functions as an on-site radionuclide activity detector for nuclear waste disposal sites and radioactive contamination monitoring at nuclear leak accident sites. Also serves as a laboratory radionuclide activity analyzer for collected samples.

Wartime Environments: Used as an on-site monitoring instrument in nuclear war or radiation contamination zones to detect radionuclide activity levels and contamination severity.

Product Features

Single-chip processor for data processing and storage
LCD display showing radioactivity and specific activity
Storage capacity for up to 200 sets of historical data
Alarm indicator lights and buzzers for radioactivity hazards
Soft-key design for intuitive operation
Built-in micro battery maintains internal clock during power failure

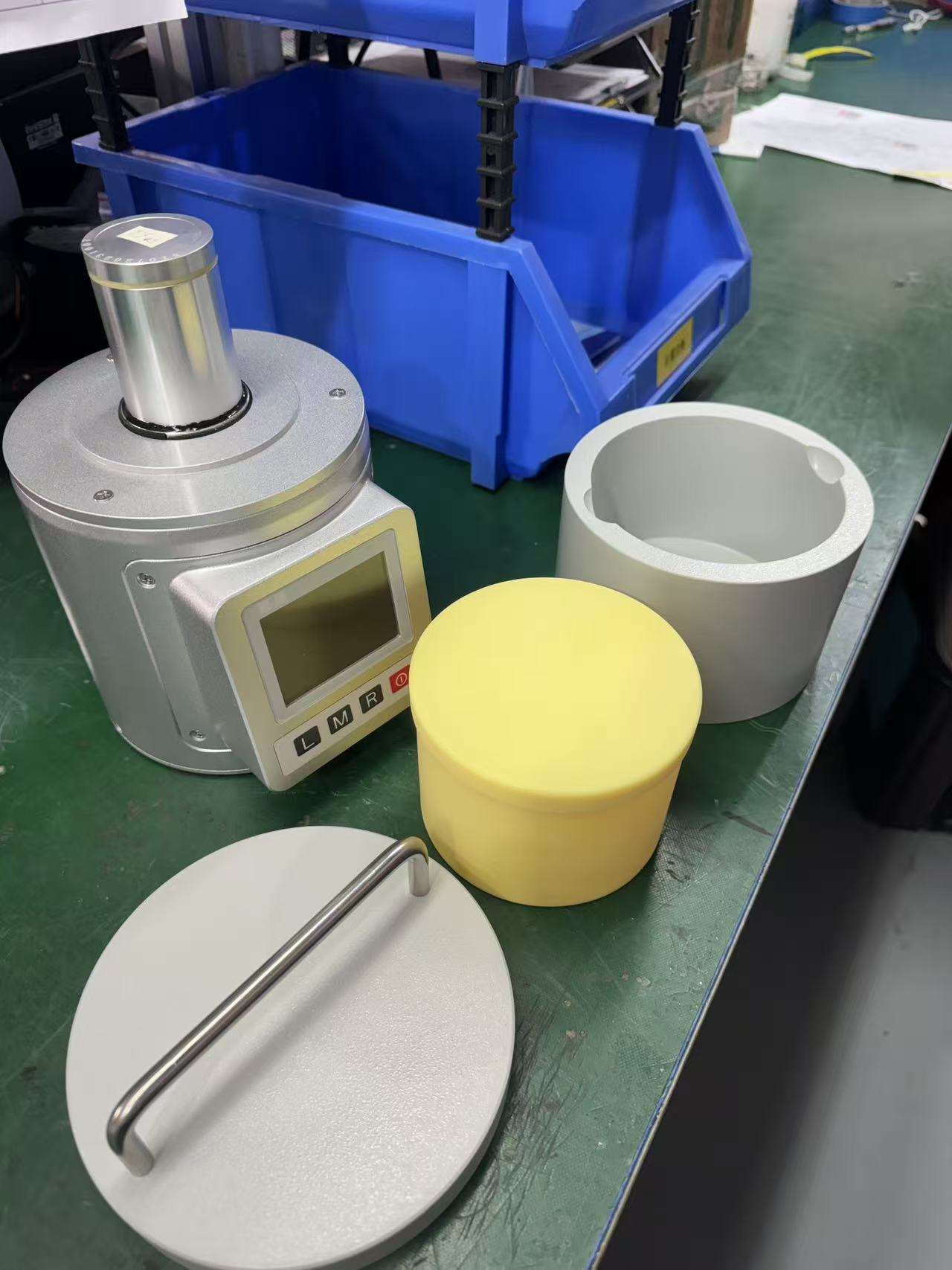

Dedicated measuring cup for liquid beverages and solid foods
All-metal casing with built-in lead shielding for external radiation isolation
Dual power supply via adapter and lithium battery
PC data export capability

Technical Parameters

Parameter	Specification
Detector	Φ45mm×70mm NAL detector
Sensitivity	>1000 CPS/uSv/h
Dose Rate Range	0.1~600 uSv/h (relative to 137Cs)
Measurement Accuracy	3%~6%
Measurement Speed	Fastest response time: 5 seconds (activity 100 Bq)
Minimum Detectable Activity	10 Bq/L (relative to 137Cs)
Measurement Range	10 Bq/L~10 Bq/L (relative to 137Cs, using standard sample cup)
Display Position	Bq, Bq/L, Bq/kg
Working Time	10 hours
Density Range	0.2~1.8g/cm³
Weight Range	100g~900g
Dimensions	≤170mm×160mm×300mm
Ambient Temperature	-10℃~50℃
Equipment Weight	Approx. 9.95kg
Standards Compliance	GB/T17626.2-2018 Electrostatic Discharge Immunity Test GB/T17626.3-2023 Radio Frequency Electromagnetic Field Radiation Immunity Test
