Thermoluminescence Precision Annealing Furnace

Contact Us
  • Fast And Safe Logistics
  • Get samples for free

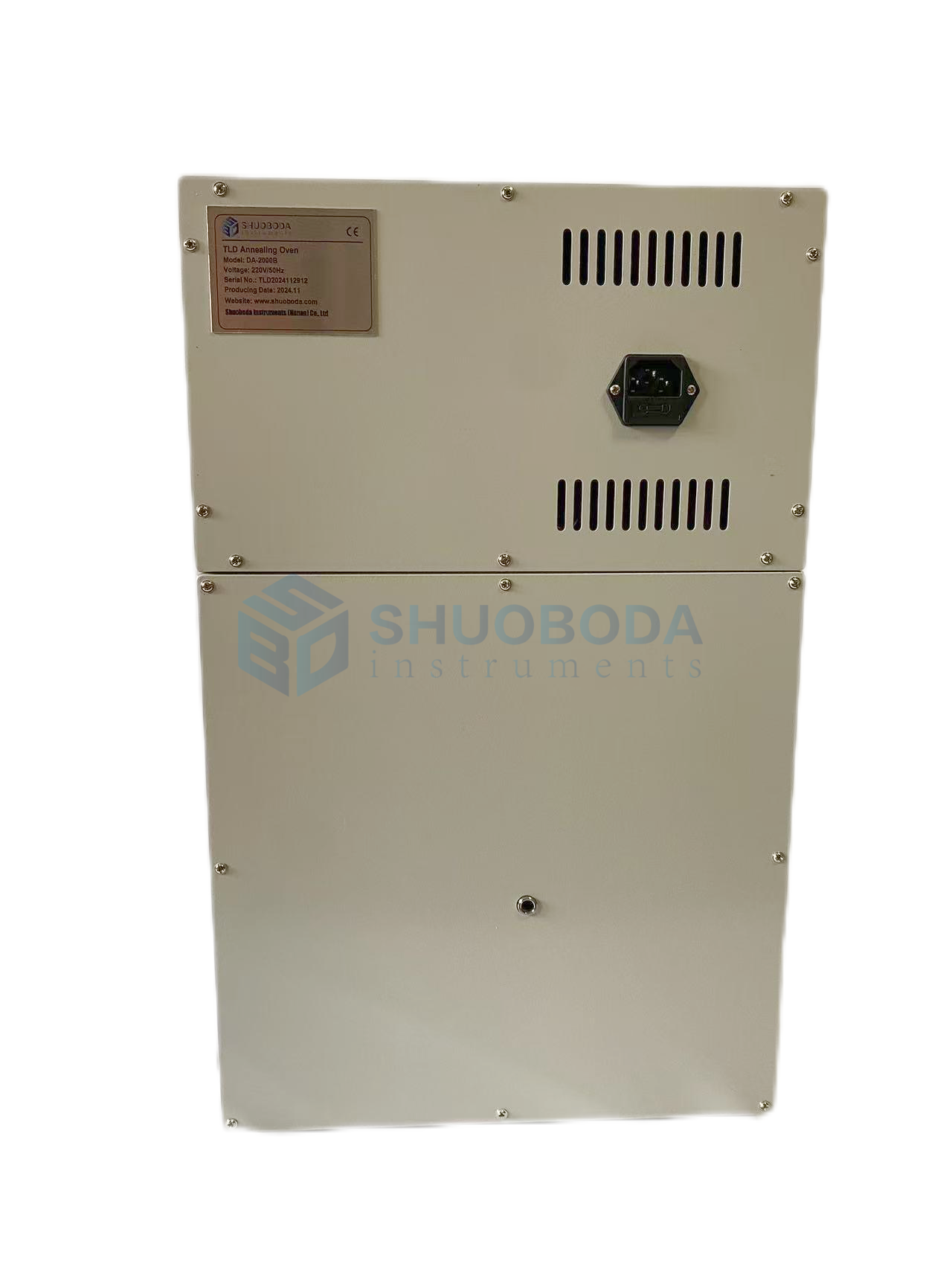

TLD-2000 Thermoluminescence Precision Annealing Furnace is a thermoluminescence element annealing device designed for thermoluminescence detectors. It is characterized by precise temperature control, stable and reliable performance, simple and convenient operation, beautiful appearance, suitable for annealing of various thermoluminescent elements, and is an ideal supporting device for thermoluminescent dose measurement systems.

Item Parameters
Temperature range0~400℃ arbitrarily set
Accuracy±0.5% full scale
Heating timeUnder normal circumstances, the time required to rise from room temperature to 240°C is less than 1 hour
Temperature overshoot valueWhen the PV and SV values are balanced, put the sample tray into the furnace, and the temperature overshoot value does not exceed 2°C.
Temperature displayPV/SV and other parameters are all digitally displayed
Control methodPID control with AT (automatic tuning) function
Sensor Stainless steel Pt100 with flange
Heating elementfar infrared
operating unitsSSR
TLD coolingIf necessary, the fan can be started to air-cool the dosing element.
Annealing time controlCan be set arbitrarily between 0 and 99 minutes
Power supply220VAC 50Hz; fuse source 4A
working environment-5℃~50℃; 45~85%RH
Dimensions300×350×480mm
weight30kg
