SP-3200 UV-Vis-NIR spectrophotometer

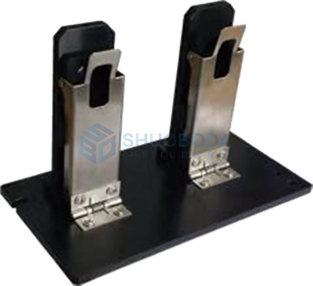

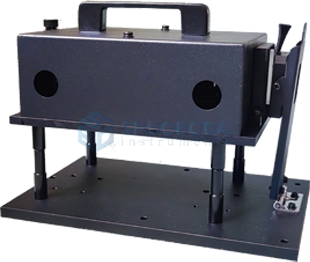

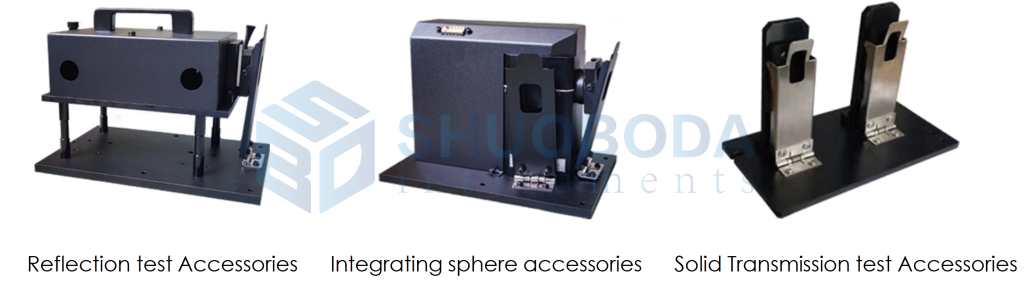

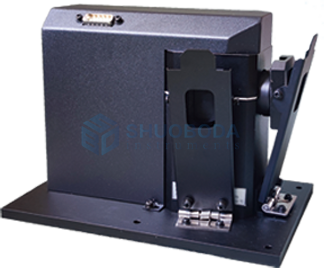

SP-3200 UV-visible near-infrared spectrophotometer is a high-performance UV/VIS/NIR spectrophotometer. Equipped with built-in transmission, specular reflection and integrating sphere accessories, it can measure transmission and reflection spectra of various samples, including paint coatings, architectural glass, and semiconductor materials.

Instrument Features

1. Imported light source for longer life and better stability.

2. Dual imported detectors for the UV/VIS/NIR bands provide greater sensitivity to weak signals, reduced noise, and higher accuracy.

3. A dual-beam, dual-grating, and dual-detector optical system design reduces background interference, improves measurement accuracy, and achieves full spectral coverage of the UV, VIS, and NIR bands.

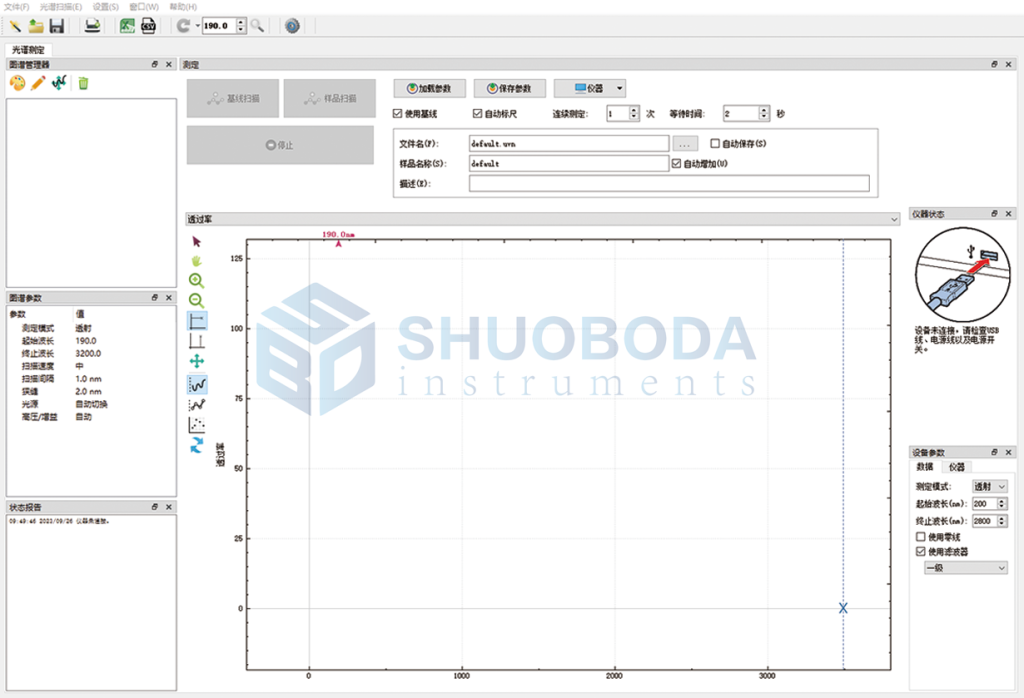

4. Control system: Computer-controlled instrument (including grating switching, filter switching, receiver switching, and wavelength scanning), automatic power-up calibration, and automated data acquisition and processing.

5. Seven selectable slit widths: 0.2nm, 0.5nm, 1.0nm, 2.0nm, 3.0nm, 5.0nm, and 7.0nm. Users can select any slit width based on their needs.

Standards

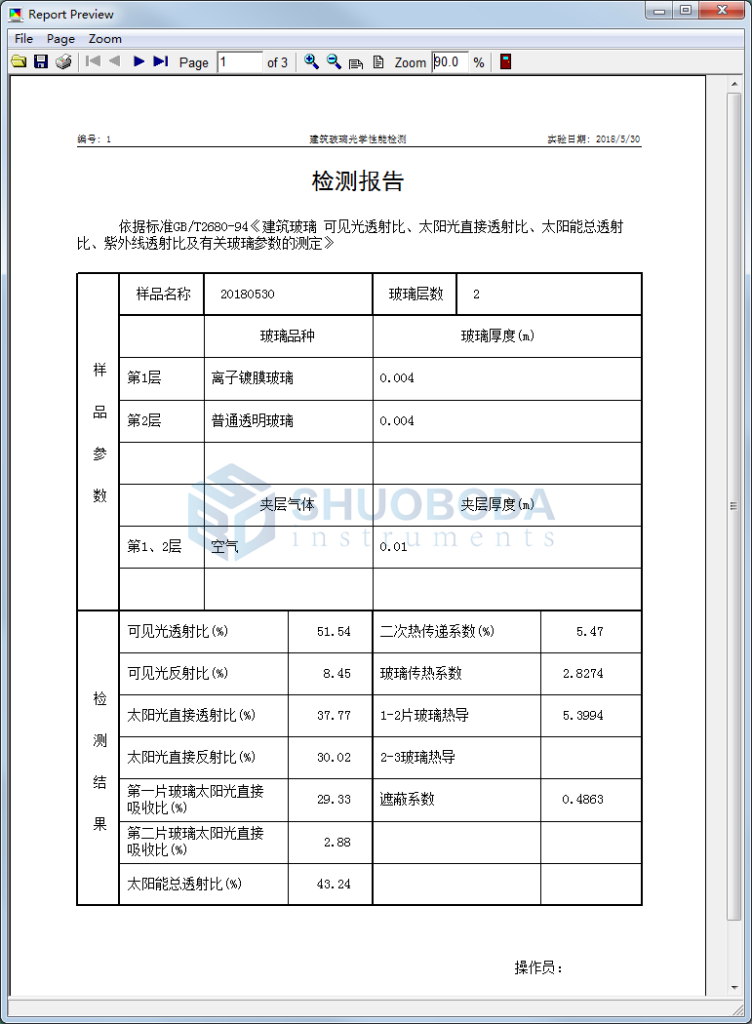

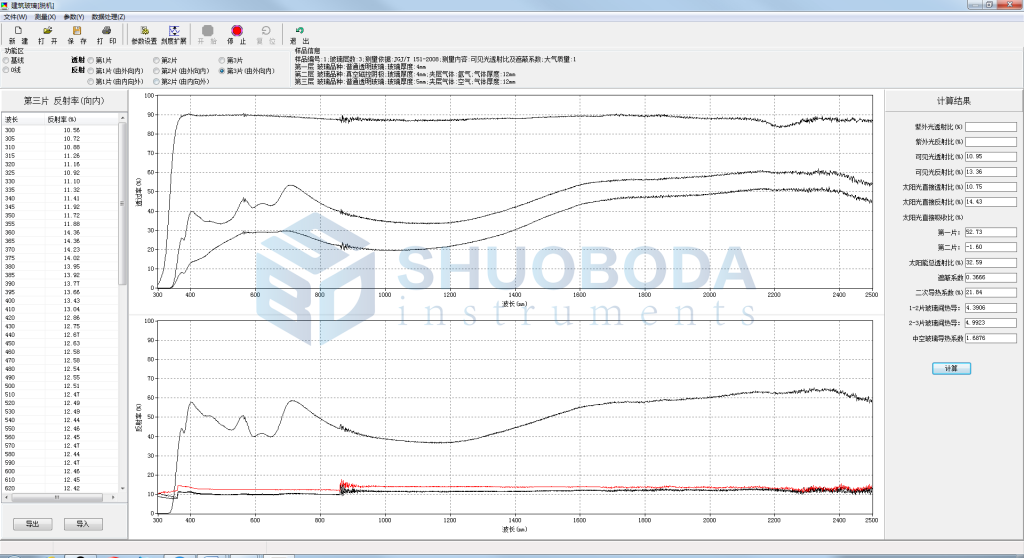

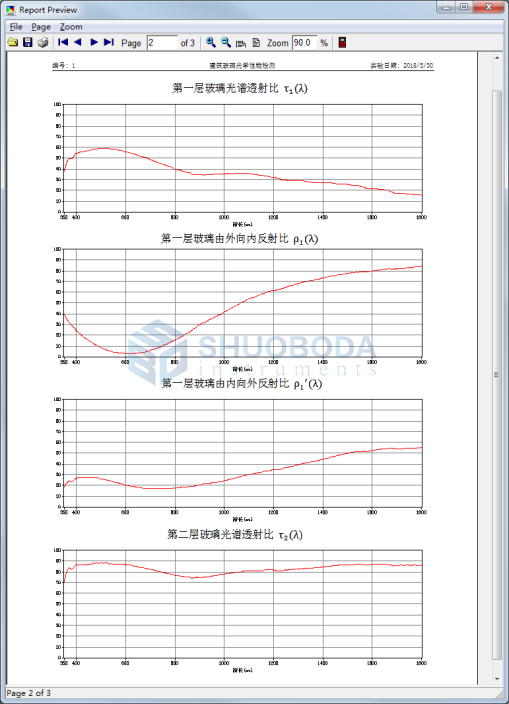

1. GB/T 2680-2021 "Determination of Visible Light Transmittance, Direct Solar Transmittance, Total Solar Transmittance, Ultraviolet Transmittance, and Related Glass Parameters for Architectural Glass"

2. JGJ/T 151-2016 "Code for Thermal Calculation of Glass Curtain Walls for Doors, Windows, and Buildings"

3. ISO 9050-2003 "Determination of Luminous Transmittance, Direct Solar Transmittance, Total Solar Transmittance, Ultraviolet Transmittance, and Related Gloss Coefficients for Architectural Glass"

4. GB/T 22476-2008 "Calculation and Determination of Steady-State U-Values (Heat Transfer Coefficients) of Insulating Glass"

5. GB/T 36261-2018 "Technical Conditions and Calculation Methods for On-site Measurement of Optical and Thermal Parameters of Energy-Saving Glass for Buildings"

6. GB/T 25261-2018 "Reflective Thermal Insulation Coatings for Buildings"

7. JG/T 235-2014 "Architectural Reflective Thermal Insulation Coatings"

8. JGJ/T 287-2014 "Energy-Saving Test Standard for Architectural Heat-Reflective Coatings"

9. GJB 798-90 "Camouflage Paint Film Color"

10. GJB 2502.2-2006 "Test Methods for Spacecraft Thermal Control Coating Layers"

Technical Parameters

Model	SP-3200
Optical structure	Czerny-Turner
Working wavelength range	190-3200nm (Transmission/Reflection Mode) / 250-2500nm (Integrating Sphere Mode)
Baseline flatness	±2%T (280-2500nm, after 30-minute warm-up)
Scanning method	Transmittance, Absorbance, Reflectance, Spectral Energy
Wavelength accuracy	0.5nm (UV/VIS); 2nm (NIR)
Wavelength repeatability	±0.3nm (UV/VIS); ±1nm (NIR)
Sampling interval	0.1nm, 0.2nm, 0.5nm, 1nm, 1.5nm, 2nm, 5nm, 10nm
Photometric range	0.300-2.5A
Photometric accuracy	±1%T (0-100%T)
Photometric repeatability	0.5%T
Integrating sphere	Diameter: 100mm
Spectral bandwidth	1nm-5nm
Dimensions	700×600×260mm
Weight	50Kg
