Automatic Disintegration Time Limit Testing Apparatus (three cups)

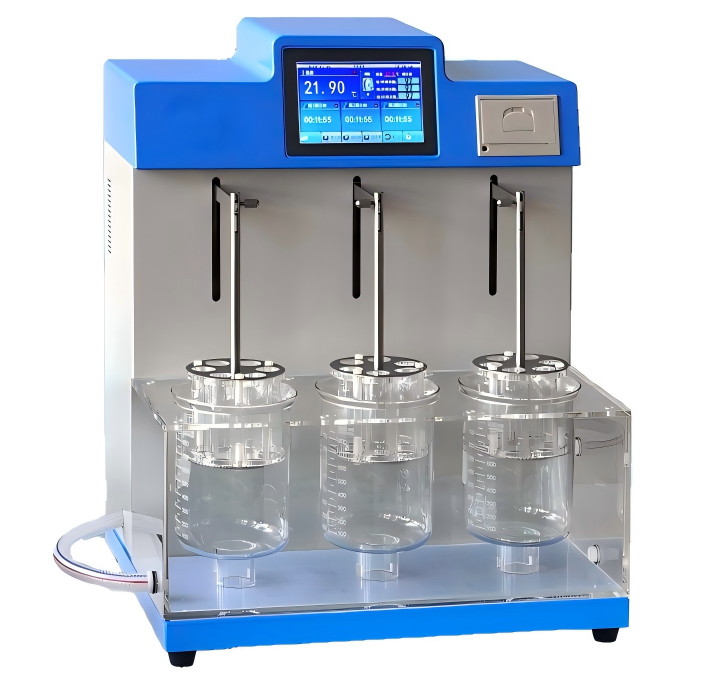

DP-BJ-3C Automatic Disintegration Time Limit Testing Apparatus (three cups)

DP-BJ-3C intelligent disintegration time limit testing apparatus is developed and produced by shuoboda, in accordance with the regulations on the disintegration time limit of tablets, capsules, pills, etc. in the 2020 edition of the "Chinese Pharmacopoeia". A high-precision intelligent disintegration time limiter that records the disintegration test process and results. Its main technical indicators also comply with the requirements of USP, BP and JP on disintegration time limit detection.

Applicable standards

"Chinese Pharmacopoeia" 2020 Edition
Comply with current Chinese GMP regulations

Working environment

Safety performance: complies with the provisions of the "Disintegration Apparatus" of country's pharmaceutical industry standards
Working power supply: AC 220V+10%50Hz, 600W
Environmental conditions: 5~35°C, humidity <80%

Features:

The real-time display function of the number of lifting and lowering of the hanging basket provides users with a reliable method to monitor the frequency of lifting and lowering of the hanging basket.
At the end of the test, the hanging basket automatically stops at the highest position, making it easier to install and remove the hanging basket and beakers.
The instrument provides scheduled shutdown and scheduled automatic preheating functions.
The instrument provides an intelligent temperature calibration function. Users can easily, conveniently and reliably complete temperature calibration through interactive operations.
The instrument has temperature abnormality, temperature over-limit alarm and secondary overheating automatic protection functions.
The instrument provides real-time display of "year, month, day, hour, minute and second" function.

Main Specifications:

MODEL	DP-BJ-3C
Screen display	High-precision color touch screen, interactive control, intelligent management
Three baskets	Each basket can be raised and lowered independently or simultaneously.
Permission management	Three levels, multiple users (login method: username + password)
Audit trail query	Can query by date or number, and you can print it selectively or in full.
Print content	Sample identification, name, number, water temperature, timing of each basket, number of lifts, quantitative disintegration test results (actual disintegration ratio of 18 samples) tester, supervisor, start test time, end time, test date .......
Working modes	A. Basic test, the time is counting up, timing can be paused and continued, which is convenient for research tests. B. Program-controlled test, the time is countdown, can be preset and saved to facilitate routine repetitive testing.
Timing range	Any setting within 24 hours (display resolution, hours: minutes: seconds)
Temperature range	5C~50°C
Temperature accuracy	0.01°C
Temperature deviation	≤±0.3°C
Temperature control sensor	1/3B high-precision Pt1000
Hanging basket lifting frequency	30~32 times/minute
Basket lifting count	independent real-time display of the number of lifts and lowerings of the three baskets
Hanging basket lifting amplitude	(55+0.5) mm
Lifting amplitude accuracy	≤±0.5mm
Screen cup bottom spacing	25±1mm
Sieve aperture	2mm (standard), optional 0.425mm, 0.71mm, 1mm
Dimensions	length 570mm, width 350mm, height 550mm
Weight	23kgs
Language	Chinese or English

System configuration

DP-BJ-3C Intelligent Disintegration Apparatus 1set
Lifting basket 3 sets
Water bath 1pc
1000ml beaker 3pcs
Baffle 18 pcs
Micro Printer 1set
